Hospitals pipe two kinds of compressed air, and newcomers to medical gas projects often assume they are the same thing. They are not. Medical air is breathed by patients. Surgical air drives surgical tools. Both are clean, dry compressed air, but they run at different pressures, serve different equipment and use different outlets. This guide explains the differences and why they are kept strictly separate.
What is medical air?
Medical air is compressed air of medical quality, intended for patients to breathe. It is used to drive ventilators, to blend with oxygen to deliver precise oxygen concentrations, in anaesthesia machines and to power nebulisers. Because patients breathe it, it must meet strict purity limits for oil, water, particles, carbon monoxide and carbon dioxide, as set out in pharmacopoeia and medical gas standards.
Medical air is usually supplied at a nominal pipeline pressure of around 4 bar, the same order of pressure as oxygen. The exact figure depends on the standard and country.
What is surgical air?
Surgical air, sometimes called instrument air or surgical tool air, is supplied at a higher pressure, typically around 7 bar under European and UK practice. It powers pneumatic surgical tools such as orthopaedic drills and saws, and some other equipment in operating theatres. It is not intended for patients to breathe, although it is produced to a high quality standard and in many systems comes from the same source as medical air.
Key differences at a glance
- Purpose: medical air is for patient breathing and respiratory equipment; surgical air is for powering tools.
- Pressure: medical air is around 4 bar; surgical air is around 7 bar, depending on the standard.
- Where used: medical air is found across wards, intensive care and theatres; surgical air is mainly in operating theatres and some procedure rooms.
- Terminal units: each has its own gas-specific outlet, so a tool cannot be plugged into the medical air supply and a ventilator cannot be connected to surgical air.
- Labelling: pipework and outlets are labelled separately.
Where the air comes from

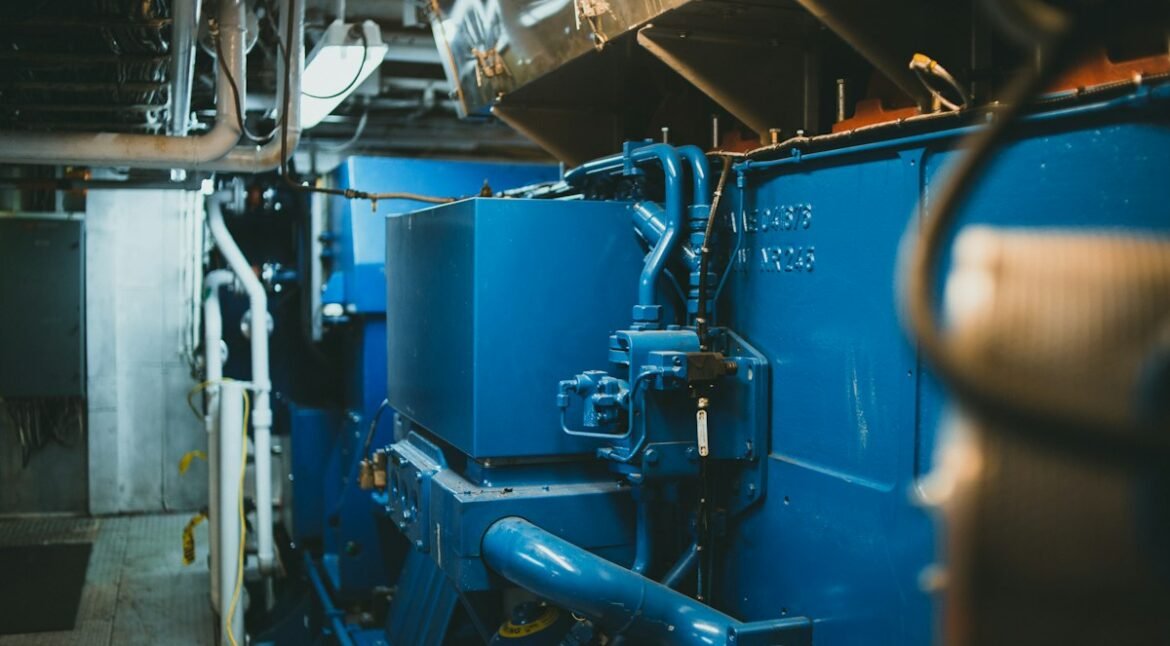

Both services usually come from a dedicated medical air compressor plant. Air is drawn from a clean intake, compressed, cooled, dried and filtered. Activated carbon filters remove odours and hydrocarbons, and further filters remove fine particles. The plant includes duty and standby compressors and dryers, receivers and monitoring for dew point and carbon monoxide.
From the plant, separate pressure regulators produce the 4 bar medical air supply and the higher surgical air supply. Some hospitals instead produce synthetic medical air by mixing oxygen and nitrogen, although compressor plants remain the most common source.
Why separation matters
Connecting a patient’s breathing circuit to a 7 bar supply could cause serious harm, while connecting a tool to a 4 bar line would make it underpowered. That is why the two services are separate systems from the regulators onwards, with their own pipework, valves, alarms and outlets, and why cross-connection testing during commissioning checks every outlet.
Pipework for both services
Both services are distributed in medical grade copper tube with cleaned copper fittings, brazed under a nitrogen purge, just like oxygen. Surgical air lines are sized for the higher pressure and the short, heavy bursts of flow that surgical tools demand.
Questions to ask at the design stage
- Which rooms need surgical air outlets, and how many tools may run at once?
- Will medical air come from a compressor plant or a synthetic air system?
- Which standard sets the pressures and purity limits?
- How will the alarms report pressure faults on each service?
